Perovskite Solar (PV)

At APS, we’re pioneering the future of solar energy through cutting-edge Perovskite Photovoltaic (PV) equipment technology. APS is your trusted source for advanced manufacturing solutions tailored to the rapidly growing perovskite solar cell market.  We deliver state-of-the-art systems up to full turnkey production lines including coating, thermal evaporation, laser processing, ALD, and encapsulation, enabling high-efficiency, cost-effective, and scalable production of perovskite PV modules.

From R&D to full gigawatt production lines, explore our innovative portfolio of precision equipment designed to meet the unique demands of perovskite technology, powering applications for single junction perovskite panel production, to 2 and 4 terminal Perovskite panel manufacturing solutions. Backed by the latest, state of the art technology, APS provides turnkey solutions, technical support, and insights into the latest perovskite market trends and technological advancements.

Partner with APS to drive the latest in renewable energy revolution!

Perovskite Process LineS
(single junction, 2-Terminal,4-Terminal)

APS offers fully integrated Perovskite Production Lines for single junction and 4 terminal tandem production, including cleaner, laser, coater, ALD, thermal evaporation deposition, testing, encAPSulation, offered as manual or fully automated solutions.  APS offers these lines as smaller R&D lines (300x300mm), to larger pilot production (600x1200mm) and mass production (1x2m ~ 2.4x1.2m) to customers worldwide.

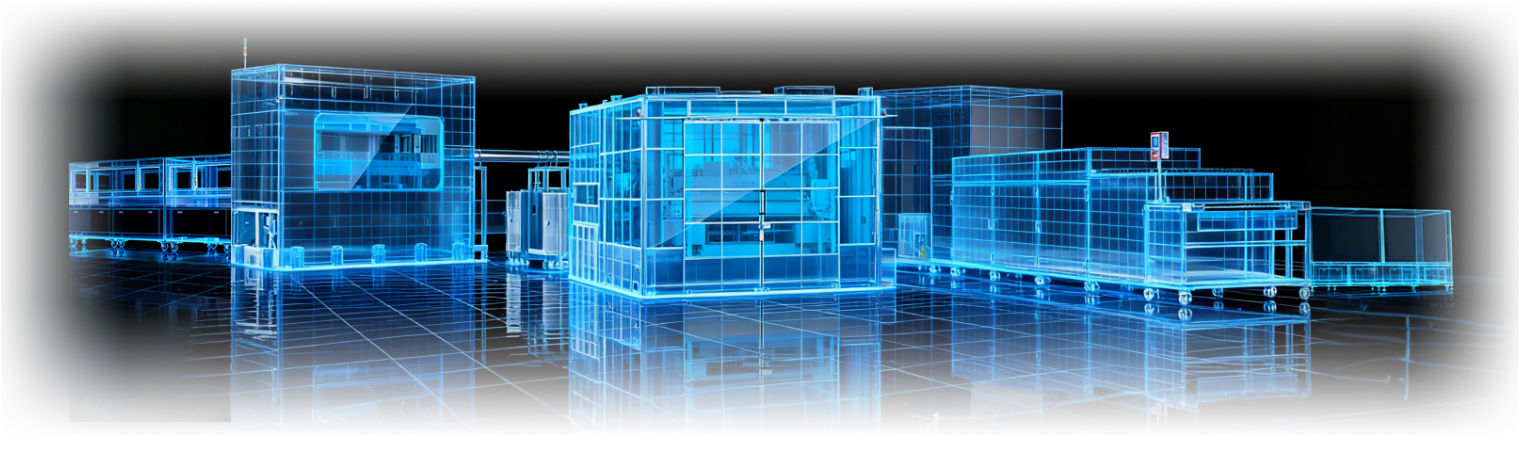

1)Single Junction Full Line - 1200 Equipment Layout examples
2)Single Junction Full Line - 300 Equipment Layout Examples
  • APS Perovskite Turn Key Line

    Items

    Scope

    Specification

    Full Equipment Arrange

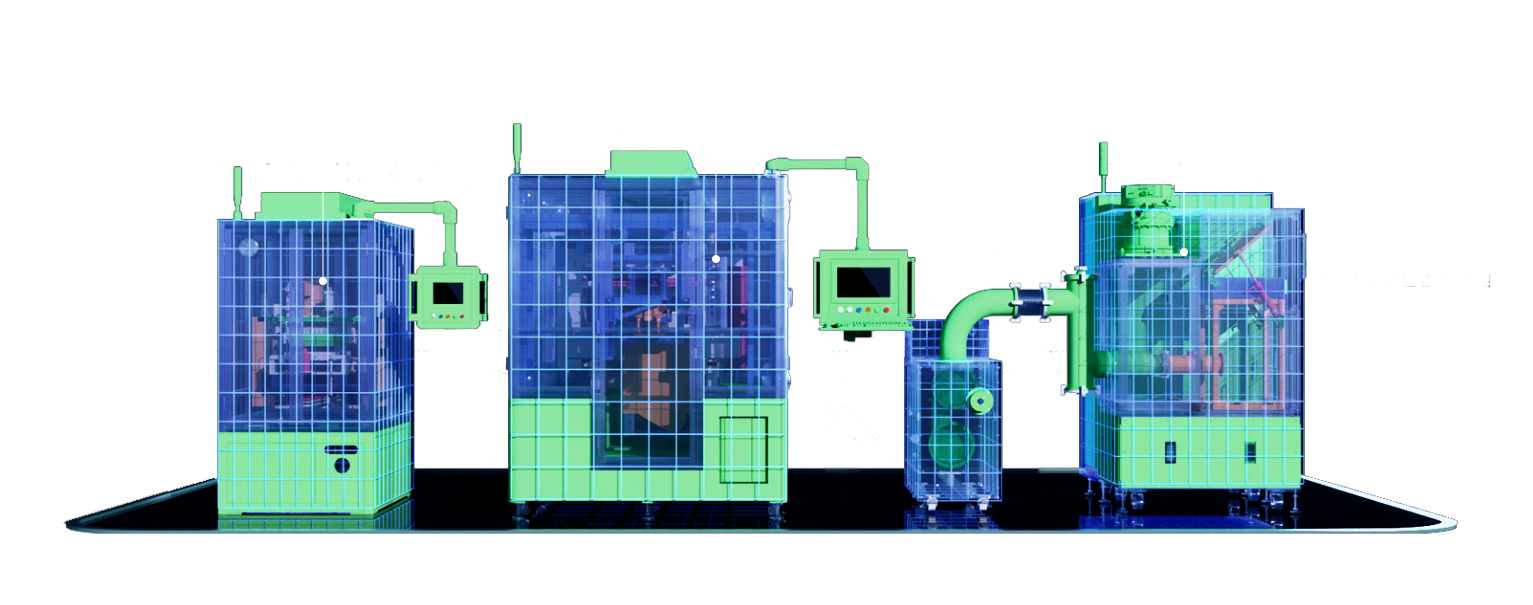

    Cleaning – Laser – Slot-Die – Dryer – PVD – Evaporation – ALD – Packaging – Test – Line Automation – Off Line Inspection

    -300mm*300mm

    -1200mm*600mm

    -2400mm*1200mm

    -Customized

    -Tact Time : 30sec, 60sec, 600sec etc, Manual Yype

    Process Package

    Materials Formulation Process Know-How Equipment Parameter Demo Test Service

    -PCE : >23%

    -Single Junction

    -Semi Transparent

    -Glass Substrate

    -Flexible Substrate



  • Process Example : PIN Structure

3)Perovskite 2-Terminal Production Line
4) 4 -Terminal
